Giunti cardanici doppi acciao inox Serie XD

+39 0374 56450

Dettagli: Categoria: Giunti cardanici doppi acciao inox Serie XD; By admin; 09.Set; Visite: 279

Giunti cardanici doppi acciaio inox Serie XD

Angolo di lavoro massimo 90°
Esecuzioni speciali a richiesta

Scarica la scheda PDF

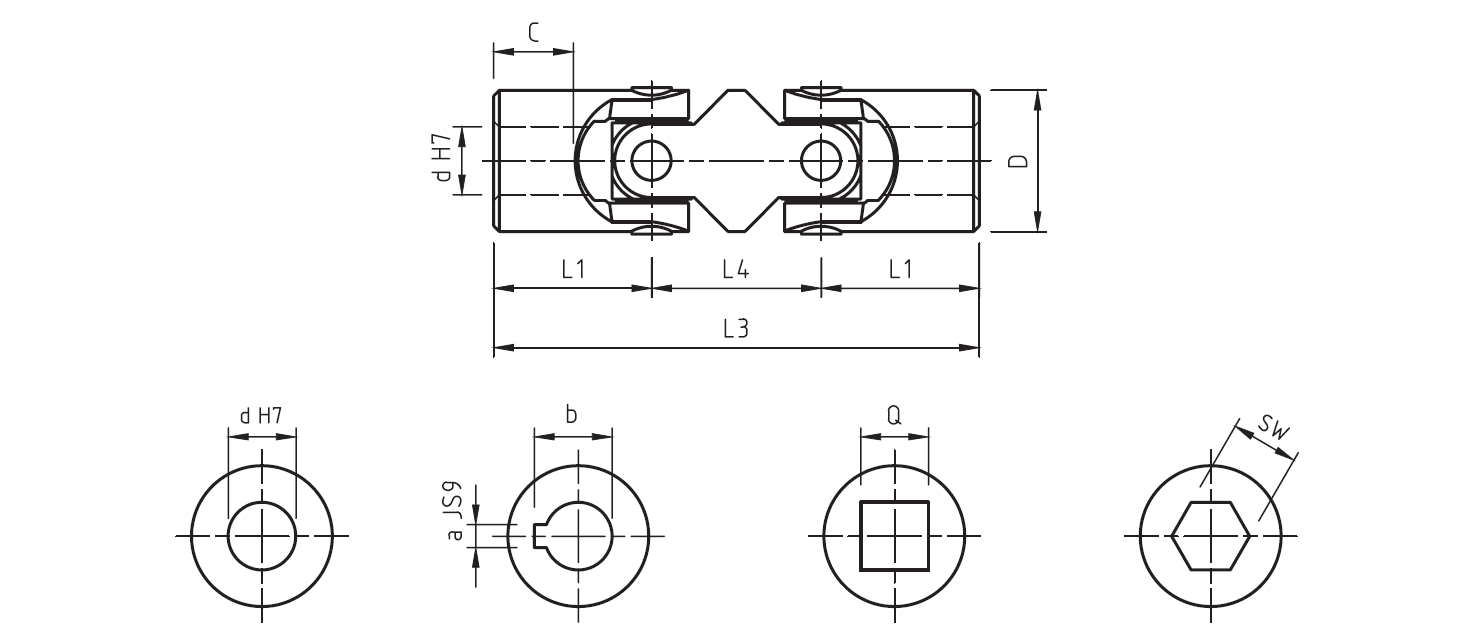

Disegno tecnico Giunti cardanici doppi acciao inox Serie XD

Codici e Misure

Modello	Codice senza cave	d	D	L3	L1	L4	C	Codice 2 cave	a	b	*Q	*SW	Peso Kg
01XD	SX0D0600	6	16	56	17	22	8	SX0D062C	2	7	6	6	0,08
02XD	SX0D0800	8	16	62	20	22	11	SX0D082C	2	9	8	8	0,08
03XD	SX0D1000	10	22	74	24	26	12	SX0D102C	3	11,4	10	10	0,15
04XD	SX0D1200	12	25	86	28	30	13	SX0D122C	4	13,8	12	12	0,25
05XD	SX0D1400	14	28	96	30	36	14	SX0D142C	5	16,3	14	14	0,40
1XD	SX0D1600	16	32	105	34	37	19	SX0D162C	5	18,3	16	16	0,45
3XD	SX0D2000	20	42	129	41	47	18	SX0D202C	6	22,8	20	20	1,00
5XD	SX0D2500	25	50	163	54	55	26	SX0D252C	8	28,3	25	25	2,00
6XD	SX0D3000	30	58	190	61	68	29	SX0D302C	8	33,3	30	30	2,90

(*) Non sempre disponibile a magazzino
